Devices

This tab allows you to define extensions for devices (phones) that will authenticate to SIP as standalone SIP accounts.

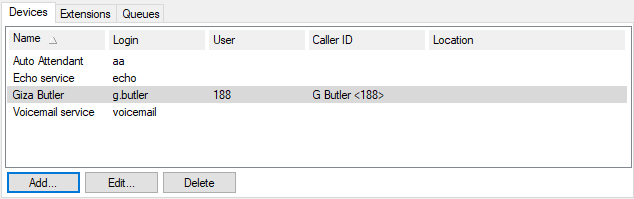

Figure. Devices tab.

Button

Description

Add

Click the button to add a new extension. The Device dialog is displayed.

Edit

Select an extension and click the button to edit this extension's entries.

Delete

Select an extension and click the button to remove this extension.

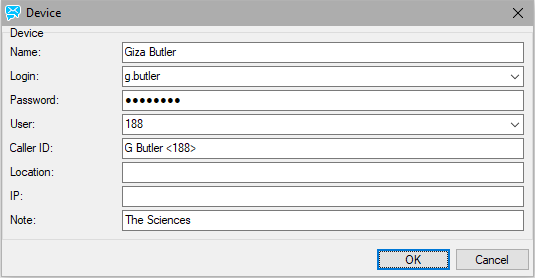

Figure. Device dialog.

Field

Description

Name

Enter a descriptive name (user or device).

Login

Enter a login name.

Password

Enter a login password.

User

Link a device with a user defined upon the Extensions/Queues tab.

Caller ID

Specify what From: header will be used for calls originating from this device (It does not matter what information you set in the phone itself, it will be overwritten by this value.)

Location

Enter a device location (optional).

IP

The IP can be used as a security feature to limit an authentication of the device just from certain IP addresses (LAN etc.).

Note

Enter a note about the device, if desired.
